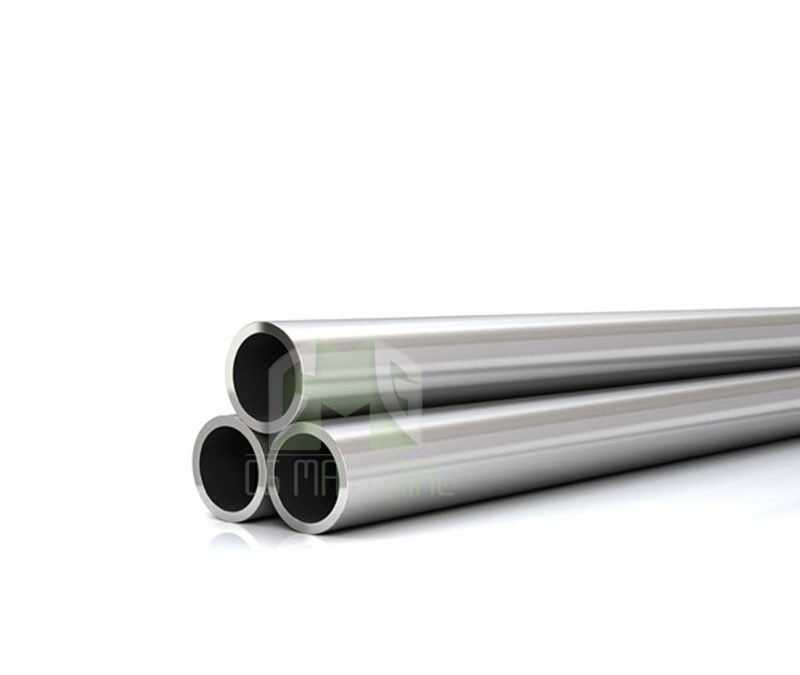

Tantalum Tube, Tantalum Pipe
Tantalum Tube, Tantalum Pipe
Tantalum tubes are cylindrical tubes made of tantalum metal, which is a rare, blue-gray, dense, and ductile element. Tantalum tubes possess excellent corrosion resistance, high melting point, and good thermal conductivity, making them ideal for use in chemical processing equipment, heat exchangers, and furnace components. Tantalum tubes can withstand extreme temperatures and are highly resistant to chemical attack by acids and other corrosive substances. Tantalum tubes are available in various sizes, wall thicknesses, and lengths to meet specific application requirements.
Tantalum Tube Properties (Theoretical)
| Molecular Weight | 180.94 |
|---|---|
| Appearance | Silvery-gray solid |
| Melting Point | 3017 °C |
| Boiling Point | 5458 °C |
| Density | 16.69 g/cm3 (20 °C) |
| Solubility in H2O | N/A |
| Crystal Phase / Structure | α: body-centered cubic (bcc) / β: tetragonal |
| Electrical Resistivity | 131 nΩ·m (20 °C) |
| Electronegativity | 1.5 Paulings |
| Heat of Fusion | 36.57 kJ/mol |
| Heat of Vaporization | 753 kJ/mol |
| Poisson's Ratio | 0.34 |
| Specific Heat | 140 J/kg·K |
| Thermal Conductivity | 57.5 W/m·K |
| Thermal Expansion | 6.3 µm/m·K |
| Vickers Hardness | 870–1200 MPa |
| Young's Modulus | 186 GPa |
| Purity | 99.95% ,99.99% |
| Condition | Annealed, Unannealed |
Tantalum Capillary Tubes Dimensions
- Outer diameter range: 0.2-8mm
- Max accuracy of outer diameter: +/-0.003mm
- Range of tube wall thickness:0.015-0.5mm
- Max accuracy of wall thickness: +/-0.005mm
- Max accuracy of length: +/- 0.05mm
After completion, watch with a microscope, Tantalum capillary tube has features of average metal gloss, no color changed by hydrogenation and oxidation, no scratch, no deformation, no skin needling, etc.
Tantalum Capillary Chemical Composition
|
Element |
C |
O |
N |
H |
Fe |
Mo |
Nb |
Ni |
Si |
Ti |
W |
|
R05200 (%,Max) |
0.01 |
0.015 |
0.01 |
0.0015 |
0.01 |
0.02 |
0.1 |
0.01 |
0.005 |
0.01 |
0.05 |
|
R05400 (%,Max) |
0.01 |
0.03 |
0.01 |
0.0015 |
0.01 |
0.02 |
0.1 |
0.01 |
0.005 |
0.01 |
0.05 |
|
R05255 (Ta10W) (%,Max) |
0.01 |
0.015 |
0.01 |
0.0015 |
0.01 |
0.02 |
0.1 |
0.01 |
0.005 |
0.01 |
9.0–11.0 |
|
R05452 (Ta2.5W) (%,Max) |
0.01 |
0.015 |
0.01 |
0.0015 |
0.01 |
0.02 |
0.5 |
0.01 |
0.005 |
0.01 |
2.0–3.5 |
|
R05240 (Ta-40Nb) (%,Max) |
0.01 |
0.02 |
0.01 |
0.0015 |
0.01 |
0.02 |
35.0–42.0 |
0.01 |
0.005 |
0.01 |
0.05 |
Tantalum Capillary Applications
- Used in laboratory equipment.
- Used as a substitute for platinum.
- Used as the filament lead tube of the cathode insulator in an x-ray tube.
- Used in liquid tantalum electrolytic capacitors.
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
