CG MATERIAL

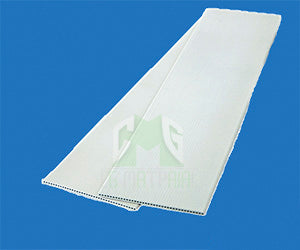

Silicon Carbide Flat Film Membrane SiC
Silicon Carbide Flat Film Membrane SiC
Silicon Carbide Flat Film Membrane (SiC FFM) is a type of high-performance membrane used in filtration and separation processes. It is made of a thin layer of silicon carbide, a high-strength ceramic material known for its excellent mechanical, thermal, and chemical properties.
SiC FFM is designed to filter and separate particles and molecules from liquids and gases with high efficiency and precision. Its thin and flat design allows for a large surface area to be exposed to the fluid, which improves the filtration efficiency and reduces pressure drop.
SiC FFM is highly durable and resistant to harsh chemical environments, making it suitable for use in a wide range of applications, including water treatment, pharmaceuticals, food and beverage, and petrochemicals. It can withstand high temperatures and pressures, making it suitable for use in challenging industrial environments.
SiC FFM is easy to clean and maintain, and its high mechanical strength and corrosion resistance ensure a long service life. Its high thermal conductivity also allows for efficient heat transfer during filtration and separation processes, which can be beneficial in certain applications.
Overall, Silicon Carbide Flat Film Membrane (SiC FFM) is a reliable and high-performance membrane that offers excellent filtration and separation capabilities in a wide range of industrial applications. Its unique combination of properties makes it a popular choice for use in challenging environments, where durability and efficiency are critical.
Silicon Carbide Ceramics Properties
| Compound Formula | SiC |
| Molecular Weight | 40.1 |
| Appearance | Black |
| Melting Point | 2,730° C (4,946° F) (decomposes) |
| Density | 3.0 to 3.2 g/cm3 |
| Electrical Resistivity | 1 to 4 10x Ω-m |
| Poisson's Ratio | 0.15 to 0.21 |
| Specific Heat | 670 to 1180 J/kg-K |
Silicon Carbide Ceramics Specification
| CAS#: 409-21-2, Not Hazardous | |||
| Powder, F.W. 40.10, m.p. 2700 °C, Spec. Gravity 3.217 gm/cm3 | |||
| Item No. | Description | Purity | Lot Size |
| CB14-85 | Silicon Carbide Powder Particle Size:18, 30, 40 or 200 mesh |
> 85 % F.C. < 2.5%, Fe2O3 < 2%, Al2O3 < 1.2% |
Customize |
| CB14-90 | Silicon Carbide Powder Particle Size:18, 30, 40 or 200 mesh |
> 90 % F.C. < 1.5%, Fe2O3 < 1.2% |
Customize |
| CB14-98 | Silicon Carbide Powder Particle Size:18, 30, 40 or 200 mesh |
> 98 % F.C. < 0.6%, Fe2O3 < 0.7% |
Customize |
Silicon Carbide Ceramics Applications
Until the invention of boron carbide in 1929, silicon carbide was the hardest synthetic material known. It has a Mohs hardness rating of 9, approaching that of a diamond. In addition, SiC crystal has fracture characteristics that make them extremely useful in grinding wheels and in abrasive paper and cloth products.
Its high thermal conductivity, together with its high-temperature strength, low thermal expansion, and resistance to chemical reaction and thermal shock, makes silicon carbide valuable in the manufacture of high-temperature bricks and other refractories.
SiC ceramic is also classed as a semiconductor, having an electrical conductivity between that of metals and insulating materials. This property, in combination with its thermal properties, makes SiC a promising substitute for traditional semiconductors such as silicon in high-temperature applications.
Silicon Carbide Flat Film Membrane Specifications
| Technical Data | |
| Substrate Material | SiC |
| Pore Size | 0.1-0.2 um |
| Pure Water Flux | 1200-1500 L/m²*h*bar |
| Configuration | multiple options |
| Temperature resistant in air | up to 800 °C |
| pH stability | 0-14* |
Silicon Carbide Flat Film Membrane Applications
Silicon Carbide Flat Film Membrane can be applied in the following fields:
-Removal of suspended matter in wastewater after biochemical treatment.
-Solid-liquid separation in the industrial process:
- a) Separation and washing of pulp in hydrometallurgy
- b) Filtration of tungsten smelting wastewater before separation
- c) Solid-liquid separation of magnesium hydroxide slurry
- d) Solid-liquid separation of coal mine water.
-Pretreatment of reverse osmosis or nano-filtration process.
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
