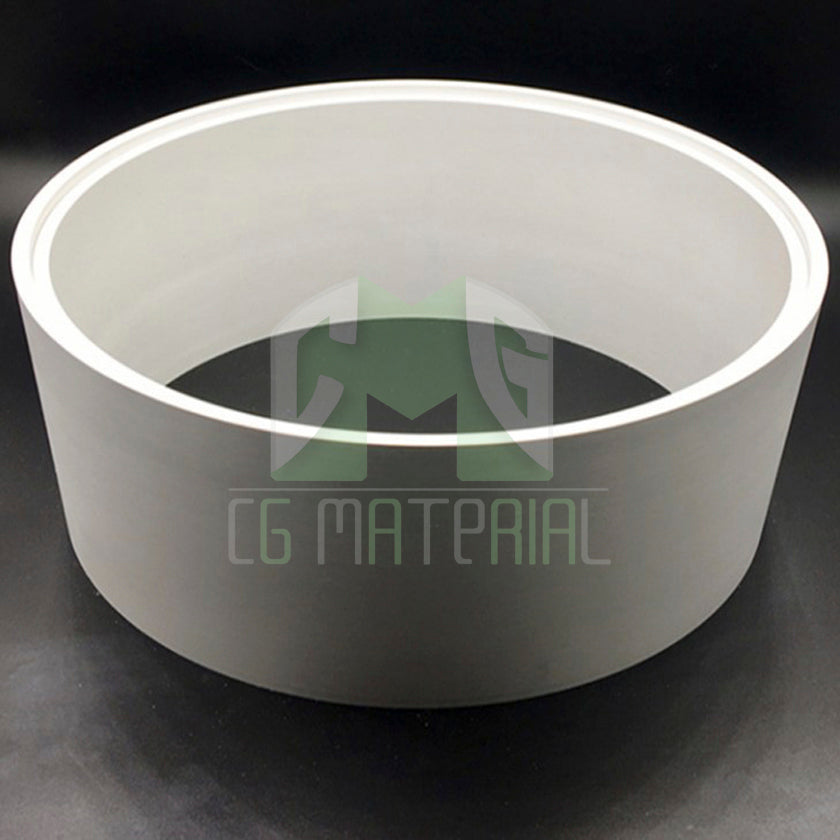

PBN Coated Graphite Products
PBN Coated Graphite Products
PBN coated graphite products are made by depositing a layer of pyrolytic boron nitride (PBN) on graphite substrates using chemical vapor deposition (CVD) technology. This process creates a thin, uniform layer of PBN that provides excellent high-temperature resistance and chemical inertness. PBN coated graphite products are widely used in high-temperature vacuum furnaces, semiconductor processing equipment, and other high-temperature applications where corrosion and wear resistance are required. These products can include PBN-coated graphite tubes, rods, crucibles, boats, and other shapes, depending on the specific application. PBN-coated graphite products can also be customized to meet the specific requirements of different industries and applications.
Boron Nitride Ceramics Specification
CG Material production formulations are developed to address the varied application problems in which ceramic components are commonly used. Many industrial applications push the envelope on specific requirements leading to the development of new formulations to successfully address them.
Item No. | Description | Purity | Lot Size |
CG-NI05-98 | Boron Nitride Powder Particle Size: 3 µm, 200 mesh or 325mesh |
BN > 98 %, B2O3 < 0.6%, Ca < 0.015%, Si < 0.12% |
100 kg 1000kg Customize |
CG-NI05-99 | Boron Nitride Powder Particle Size: 3 µm, 200 mesh or 325mesh |
BN > 99 %, B2O3 < 0.4%, Ca < 0.01%, Si < 0.10% |
100 kg 1000kg Customize |
Comparison of Boron Nitride Ceramics
Grade | BN-BO | BN-SZ | BN-AlN |
Compositions | BN>98% | BN+SiC+ZrO2 | BN+AIN |
Binder | B2O3 | / | AlBO3 |
Density | 2.1-2.2 g/cm3 | 2.3-3.0 g/cm3 | 2.5-2.6 g/cm3 |
25°C Volume Resistivity | >1013 Ω·cm | >1012 Ω·cm | >1014 Ω·cm |
Max. Service Temp. (°C) Oxygen; Inert Gas; High Vacuum |
900 2000 1800 |
900 1700 1700 |
900 2100 1900 |
Flexural Strength | 75 Mpa | 100 Mpa | 130 Mpa |
Compressive Strength | 100 Mpa | 300 Mpa | 250 Mpa |
Coefficient of Thermal Expansion 25-1000°C |
2.0 x 10–6/K | 4.0 x 10–6/K | 4.5 x 10–6/K |
Thermal Conductivity | 30 W/mK | 40 W/mK | 60 W/mK |
PBN Coated Graphite Product Properties
Compound Formula | BN |
Molecular Weight | 24.82 |
Appearance | White |
Melting Point | 2973 °C |
Density | 2.1 g/cm3 (h-BN); 3.45 g/cm3 (c-BN) |
Solubility in H2O | Insoluble |
Refractive Index | 1.8 (h-BN); 2.1 (c-BN) |
Electrical Resistivity | 13 to 15 10x Ω-m |
PBN Coated Graphite Product Applications
Boron Nitride ceramic from CG Material can withstand high temperature in high vacuum environment, plus it has excellent corrosion resistance and electrical resistance. Thus, Boron Nitride ceramic product is an ideal choice in a wide range of industries, such as:
– Crucibles for crystal growth
– Break rings for horizontal casting machine
– Insulators for high-temperature furnace
– Electric insulators in vacuum system
– Feed through for high voltage equipment
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
