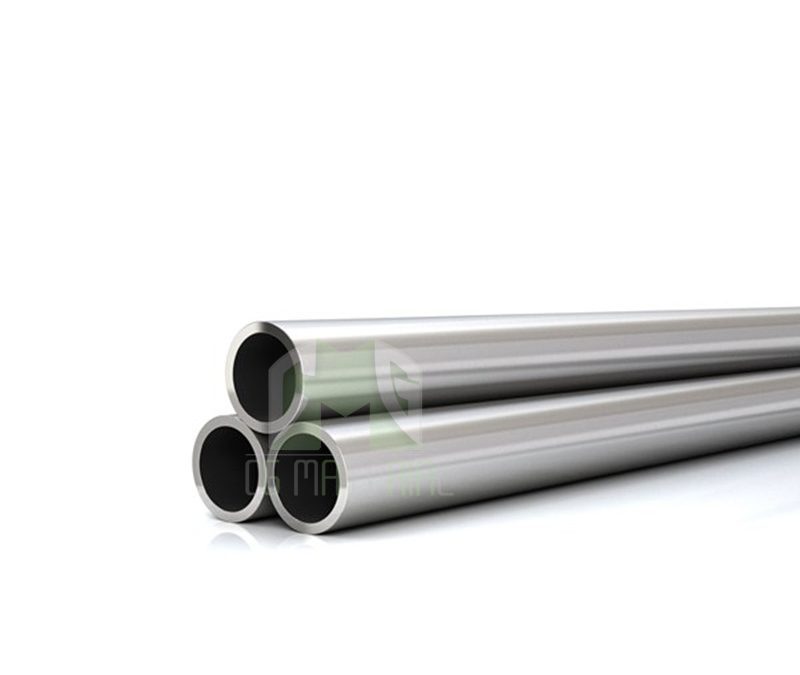

Niobium Tube, Niobium Pipe
Niobium Tube, Niobium Pipe
Niobium tubes or pipes are made of pure niobium metal or niobium alloys and are used in various high-temperature applications such as superconducting magnets, nuclear reactors, and aerospace industries. Niobium tubes and pipes have excellent corrosion resistance, high melting point, and good ductility. They can withstand high temperatures and extreme environments without losing their mechanical and chemical properties. Niobium tubes are used as critical components in chemical processing equipment, heat exchangers, and medical implants. They are also used in electrical and electronic applications such as capacitors, vacuum tubes, and semiconductors. Niobium tubes and pipes are available in various sizes, thicknesses, and lengths, and can be customized according to specific requirements.
Niobium Tube Properties (Theoretical)
| Molecular Weight | 92.9 |
|---|---|
| Appearance | Silvery |
| Melting Point | 2468 °C |
| Boiling Point | 4742 °C |
| Density | 8.57 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 12.5 microhm-cm @ 0 °C |
| Electronegativity | 1.6 Paulings |
| Heat of Vaporization | N/A |
| Poisson's Ratio | 0.4 |
| Specific Heat | 0.064 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.537 W/cm/K @ 298.2 K |
| Thermal Expansion | 7.3 µm/(m·K) |
| Vickers Hardness | 1320 MPa |
| Young's Modulus | 105 GPa |
| Materials | Niobium and Niobium Alloy |
| Purity | 99.5%/99.9%/99.95% |
| Standard | ASTM B394 |
Niobium Tubing Dimensions
| Out diameter | 2.0-100mm |
| Wall thickness | 0.2-5.0mm |
| Length | 200mm-8000mm |
Niobium Capillary Dimensions
| Out diameter | 0.2-8mm |
| Wall thickness | T0.015-0.5mm |
| Tolerance |
Outer diameter: ±0.003mm
Wall thickness T±0.005mm Length: L±0.05mm |
Niobium Tube Chemical Composition
| Material | Main Content |
Impurities (no more than %) |
||||||||||
| Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | |
| RO4200 | Remaining | 0.004 | 0.004 | 0.002 | 0.005 | 0.005 | 0.002 | 0.05 | 0.012 | 0.0035 | 0.0012 | 0.003 |
| RO4210 | Remaining | 0.01 | 0.01 | 0.005 | 0.02 | 0.01 | 0.004 | 0.07 | 0.015 | 0.0050 | 0.0015 | 0.005 |
Niobium Tube Application
Niobium capillary tubes and tantalum capillary tubes are often used in high-pressure sodium lamp production.
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
