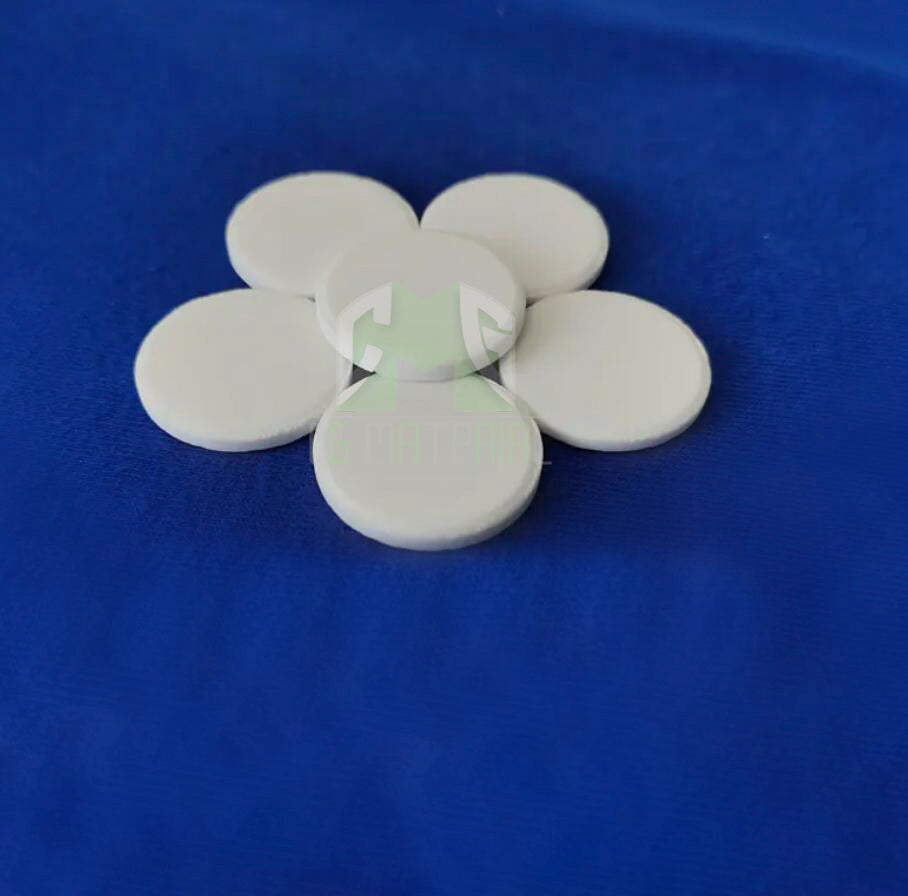

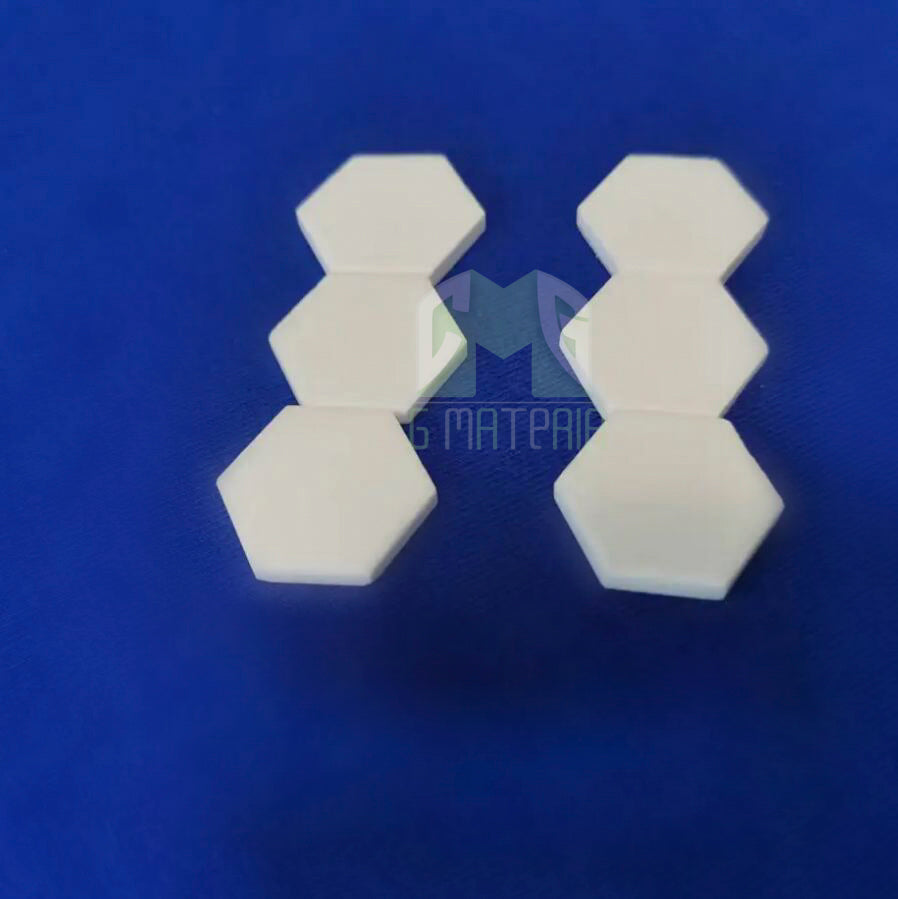

Mosaic Wear-resistant Ceramic Sheet
Mosaic Wear-resistant Ceramic Sheet
Mosaic wear-resistant ceramic sheet is a type of ceramic material designed for use in applications where high wear resistance is required. The ceramic sheet is made from high-purity alumina, which is combined with other ceramic materials and formed into a mosaic pattern, providing a highly wear-resistant surface.
The mosaic wear-resistant ceramic sheet is commonly used in high-wear areas, such as chutes, hoppers, and conveyor systems, to protect against abrasion and impact damage. The mosaic pattern of the ceramic sheet provides a highly wear-resistant surface that can withstand the continuous wear and tear of heavy use.
In addition to its wear-resistant properties, mosaic wear-resistant ceramic sheet also offers high mechanical strength, excellent thermal stability, and resistance to corrosion and chemicals. These properties make it an ideal material for use in harsh and demanding environments, such as mining and processing industries.
One of the key advantages of mosaic wear-resistant ceramic sheet is its versatility. The mosaic pattern can be customized to fit any shape or size, making it ideal for use in a wide range of applications. It can also be easily installed using various methods, such as welding, bolting, or adhesive bonding.
Overall, mosaic wear-resistant ceramic sheet is a highly effective and durable solution for protecting against wear and tear in high-wear areas. Its excellent wear-resistant properties, combined with its versatility and ease of installation, make it a popular choice for a variety of industrial applications.
| Catalog No. | CERAMICS |
|---|---|
| Size | Customized |
| Material | Al2O3 |
| Purity | 95% 99% 99.7% |
| Density | 3.8~3.9 g/cm3 |
At CG Material, we offer high quality Mosaic Wear-resistant Ceramic Sheet with exceptional purity and precision in terms of size. Our products range in diameter from 1mm to 100mm and have a purity level of up to 99.8%. We also provide custom manufacturing options for special shapes to meet specific needs.
Mosaic Wear-resistant Ceramic Sheet Specifications
| Specification | Parameter |
| Content (Al2O3) % | ≥95 |
| Density (g/m3) | ≥3.5 |
| Rockwell Hardness | ≥80 HRA |
| Compressive Strength | ≥850 Mpa |
| Fracture Toughness KIC | ≥4.8Mpa·m^(1/2) |
| Flexural Strength | ≥290Mpa |
| Thermal Conductivity | 20W/m.K |
| Coefficient of Thermal Expansion | 7.2×10^(-6)m/m.K |
| Common Specifications | ||
| Length (mm) | Width (mm) | Thickness (mm) |
| 10 | 10 | 3-10 |
| 17.5 | 17.5 | 3-15 |
| 20 | 20 | 4-20 |
| 24 | 24 | 10 |
Mosaic Wear-resistant Ceramic Sheet Applications
Used as a wear-resistant material for material conveying equipment in petroleum, mining, steel mills, power plants and other industries or liquids flowing through the surface of pipelines.
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
