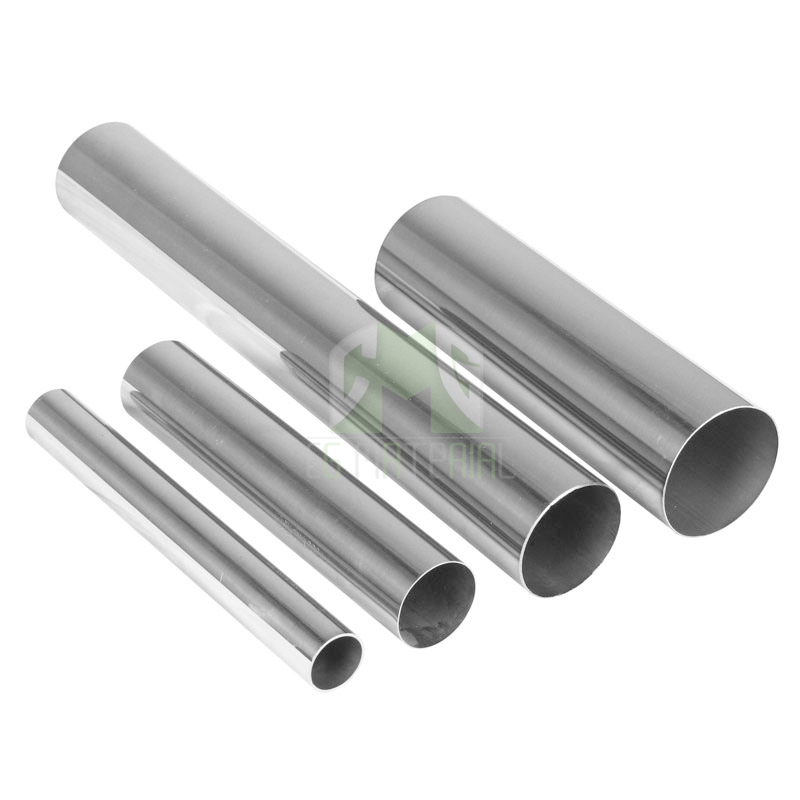

Molybdenum Tube, Molybdenum Pipe
Molybdenum Tube, Molybdenum Pipe
Molybdenum tubes and pipes are long, hollow cylinders made of molybdenum, a refractory metal known for its excellent mechanical and thermal properties. Molybdenum tubes and pipes are commonly used in high-temperature applications where corrosion resistance and high-strength materials are required.
Molybdenum tubes and pipes come in various sizes and thicknesses, ranging from small-diameter tubes to large-diameter pipes. They can be fabricated to meet specific requirements for length, diameter, and surface finish.
Molybdenum tubes and pipes are often used in the production of high-temperature furnace components, such as heating elements, thermocouples, and radiation shields. They are also used in the aerospace and defense industries for their high-strength properties and ability to withstand extreme environments.
Molybdenum tubes and pipes can be fabricated using a variety of techniques, including hot and cold rolling, extrusion, and drawing. They can also be machined to precise dimensions and surface finishes using cutting and grinding tools.
Molybdenum Tube Properties (Theoretical)
| Molecular Weight | 95.94 |
|---|---|
| Appearance | Silvery |
| Melting Point | 2623 °C |
| Boiling Point | 4639 °C |
| Density | 10280 kg/m3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 5.2 microhm-cm @ 0 °C |
| Electronegativity | 1.9 Paulings |
| Heat of Fusion | 6.6 Cal/gm mole |
| Heat of Vaporization | 128 K-Cal/gm atom at 4612 °C |
| Poisson's Ratio | 0.31 |
| Specific Heat | 0.0599 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 1.38 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 4.8 µm·m-1·K-1 |
| Vickers Hardness | 1530 MPa |
| Young's Modulus | 329 GPa |
| Materials | Molybdenum metal/TZM/MoLa Alloy |
| Purity | 99.9%‐99.99% |
| Standard | ASTM B387 |
Molybdenum Tube & TZM Tube Specifications
|
Product |
Molybdenum Tube and TZM Tube |
|
Dimensions |
Out Diameter: 1.0-400mm Wall Thickness: 0.2-30.0mm Length: 200-6000mm |
|
Material |
Pure Molybdenum (Type 361), Molybdenum TZM (Type 364), Mo-Lanthanoxid (ML) |
|
Purity |
99.95%, 99.99% |
Molybdenum Tube and TZM Tube Dimensions
|
Name |
Outer Diameter (mm) |
Wall Thickness (mm) |
Length (mm) |
|||
|
Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
|
|
Molybdenum Tube TZM Tube |
<100 |
±1.0 |
<1 |
±0.1 |
<100~150 |
±2.0 |
|
100~200 |
±2.0 |
1~3 |
±0.25 |
150~350 |
±3.0 |
|
|
200~300 |
±3.0 |
3~10 |
±0.5 |
350~650 |
±4.0 |
|
|
300~400 |
±5.0 |
10~20 |
±1.0 |
650 ~ 2000 |
±5.0 |
|
|
>400 |
±7.0 |
20 ~ 30 max |
±1.0 |
2000 ~ 6000 max |
±5.0 |
|
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
