Gadolinium Fluoride Powder (GdF3), CAS No 13765-26-9
Gadolinium Fluoride Powder (GdF3), CAS No 13765-26-9

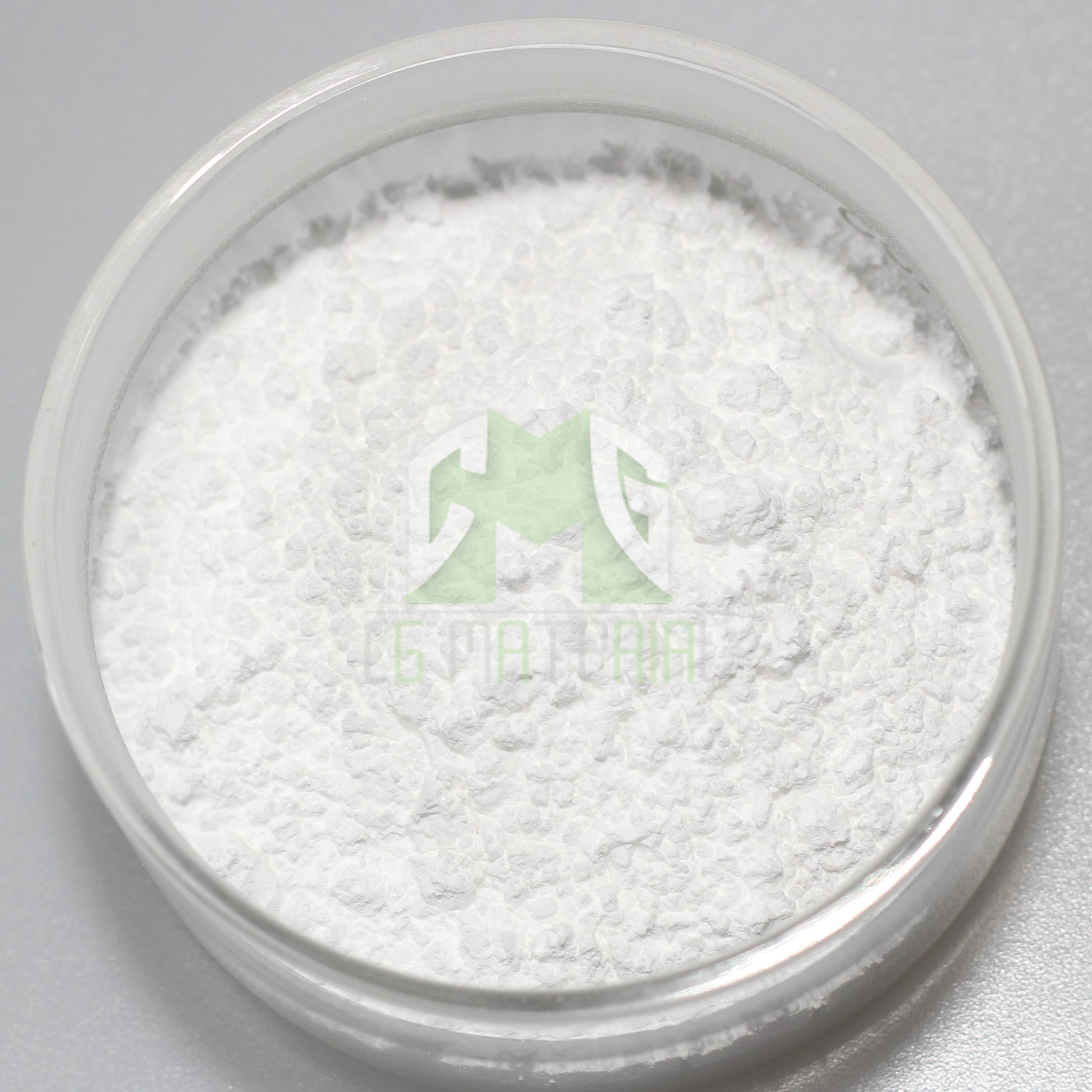

Gadolinium Fluoride (GdF3) Powder is a compound composed of the rare earth metal gadolinium and the halogen fluorine. It is a white, odorless powder that is insoluble in water but soluble in acids.
GdF3 powder has various applications in fields such as optics, electronics, and catalysis. For instance, it can be used as a scintillator material for radiation detection, as a host material for phosphors in LED lighting, and as a catalyst for various chemical reactions.
In the field of medicine, gadolinium fluoride can also be used as a contrast agent for magnetic resonance imaging (MRI) scans. The compound is injected into the patient's bloodstream before the scan, and its magnetic properties allow for clear images of the body's internal structures.
It is important to note that, as with all gadolinium-based contrast agents, there is a risk of adverse effects in some patients, particularly those with kidney problems. As such, the use of GdF3 powder in medical applications should be carefully monitored and evaluated by trained medical professionals.
Properties (Theoretical)
| Compound Formula | F3Gd |
|---|---|
| Molecular Weight | 214.25 |
| Appearance | powder |
| Melting Point | 1231 °C (2248 °F) |
| Boiling Point | N/A |
| Density | 7.1 g/cm3 |
| Solubility in H2O | N/A |
| Exact Mass | N/A |
| Monoisotopic Mass | 214.91931 Da |
Data Sheet
| MF | GdF3 |
| MW | 214.25 |
| Purity | 99.999%/99.99%/99.9%/99% REO |
| CAS | 13765-26-9 |
| Synonyms | GadoliniumFluorid/Fluorure De Gadolinium/Fluoruro Del Gadolinio |
Application
Gadolinium Fluoride is used for making optical glass and dopant for Gadolinium Yttrium Garnets which have microwave applications. Gadolinium is used for making Gadolinium Yttrium Garnet, it has microwave applications and is used in the fabrication of various optical components and as substrate material for magneto-optical films. It is used for making Gadolinium Yttrium Garnet (Gd:Y3Al5O12); it has microwave applications and is used in the fabrication of various optical components and as substrate material for magneto-optical films. Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) was used for imitation diamonds and for computer bubble memory. It can also serve as an electrolyte in Solid Oxide Fuel Cells (SOFCs).
Specifications
| Grade | 99.999% | 99.99% | 99.9% | 99% |
| CHEMICAL COMPOSITION | ||||
| Gd2O3 /TREO (% min.) | 99.999 | 99.99 | 99.9 | 99 |
| TREO (% min.) | 81 | 81 | 81 | 81 |
| Rare Earth Impurities | ppm max. | ppm max. | % max. | % max. |
| La2O3/TREO CeO2/TREO Pr6O11/TREO Nd2O3/TREO Sm2O3/TREO Eu2O3/TREO Tb4O7/TREO Dy2O3/TREO Ho2O3/TREO Er2O3/TREO Tm2O3/TREO Yb2O3/TREO Lu2O3/TREO Y2O3/TREO |
1 1 1 1 5 5 5 1 1 5 1 1 1 5 |
5 10 10 10 30 30 20 5 5 5 5 5 5 5 |
0.005 0.005 0.005 0.005 0.02 0.05 0.01 0.01 0.005 0.005 0.001 0.001 0.001 0.03 |
0.01 0.01 0.01 0.01 0.1 0.1 0.05 0.05 0.05 0.01 0.01 0.01 0.01 0.05 |
| Non-Rare Earth Impurities | ppm max. | ppm max. | % max. | % max. |
| Fe2O3 SiO2 CaO CuO PbO NiO Cl- |
3 50 50 3 3 3 150 |
5 50 50 5 5 10 200 |
0.003 0.015 0.05 0.001 0.001 0.001 0.6 |
0.005 0.03 0.06 0.003 0.003 0.005 1 |
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
