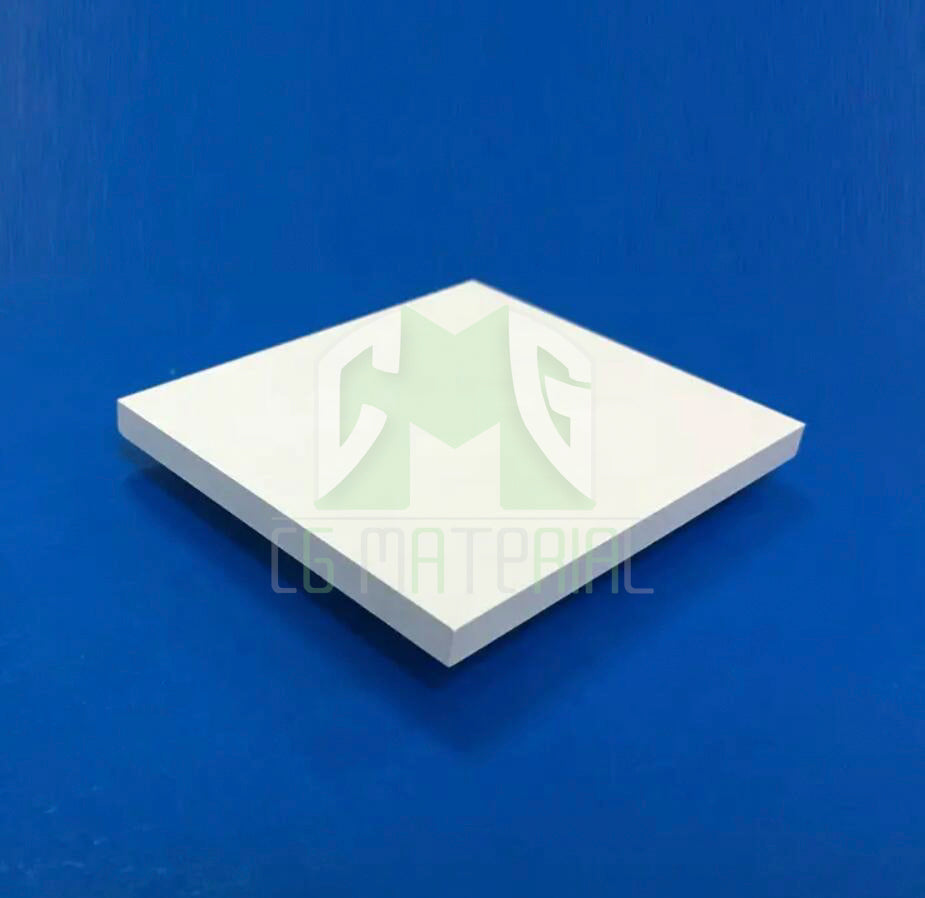

Boron Nitride Plate, Boron Nitride Sheet (H-BN)
Boron Nitride Plate, Boron Nitride Sheet (H-BN)
Boron Nitride Plate or Boron Nitride Sheet, also known as h-BN plate or sheet, is a high-performance ceramic material made from boron and nitrogen. It has excellent thermal stability, high electrical insulation, low dielectric constant, and high mechanical strength. The plate or sheet is made by pressing and sintering boron nitride powder, which results in a dense, uniform, and smooth surface.
Boron Nitride Plate or Sheet has a wide range of applications, including:
-
High-temperature insulation: It can withstand temperatures up to 2200°C without melting or decomposing, making it an ideal material for high-temperature insulation in furnaces, heaters, and other industrial applications.
-
Electrical insulation: Boron Nitride Plate or Sheet has excellent electrical insulation properties and can be used as an insulating material for electronic components, high-voltage equipment, and insulators.
-
Mold release: Due to its low coefficient of friction, Boron Nitride Plate or Sheet is an excellent mold release agent for use in the casting of metals, plastics, and other materials.
-
High-temperature lubrication: Boron Nitride Plate or Sheet is an excellent dry lubricant for use in high-temperature environments where other lubricants would break down.
-
Aerospace and defense: Boron Nitride Plate or Sheet is used in aerospace and defense applications due to its excellent thermal stability, electrical insulation, and low outgassing properties.
Boron Nitride Plate or Sheet is available in a variety of thicknesses and sizes and can be customized to meet specific requirements.
Boron Nitride Ceramics Specification
CG Material production formulations are developed to address the varied application problems in which ceramic components are commonly used. Many industrial applications push the envelope on specific requirements leading to the development of new formulations to successfully address them.
| Item No. | Description | Purity | Lot Size |
| CG-NI05-98 | Boron Nitride Powder Particle Size: 3 µm, 200 mesh or 325mesh |
BN > 98 %， B2O3 < 0.6%, Ca < 0.015%, Si < 0.12% |
100 kg 1000kg Customize |
| CG-NI05-99 | Boron Nitride Powder Particle Size: 3 µm, 200 mesh or 325mesh |
BN > 99 %， B2O3 < 0.4%, Ca < 0.01%, Si < 0.10% |
100 kg 1000kg Customize |
Comparison of Boron Nitride Ceramics
| Grade | BN-BO | BN-SZ | BN-AlN |
| Compositions | BN>98% | BN+SiC+ZrO2 | BN+AIN |
| Binder | B2O3 | / | AlBO3 |
| Density | 2.1-2.2 g/cm3 | 2.3-3.0 g/cm3 | 2.5-2.6 g/cm3 |
| 25°C Volume Resistivity | >1013 Ω·cm | >1012 Ω·cm | >1014 Ω·cm |
| Max. Service Temp. (°C) Oxygen; Inert Gas; High Vacuum |
900 2000 1800 |
900 1700 1700 |
900 2100 1900 |
| Flexural Strength | 75 Mpa | 100 Mpa | 130 Mpa |
| Compressive Strength | 100 Mpa | 300 Mpa | 250 Mpa |
| Coefficient of Thermal Expansion 25-1000°C |
2.0 x 10–6/K | 4.0 x 10–6/K | 4.5 x 10–6/K |
| Thermal Conductivity | 30 W/mK | 40 W/mK | 60 W/mK |
Boron Nitride Plate Available Materials
| Material | Description | Availability |
| BN99 | Hot pressed at high temperature (1900℃). Excellent corrosion resistance and thermal conductivity. Limited wear resistance Self-bonded and high purity(>99%) |
Machinable Blanks Finished Parts |
| BNBO | General purpose material Bonded by boric oxide |
Finished Parts |
| BNCB | Calcium borate bonded boron nitride Enhanced moisture resistance |
Finished Parts |
| BN60 | BN 60%, SiO2 40% | Finished Parts |
| BN40 | BN 40%, SiO2 60% | Finished Parts |
| ZSBN | BN-45%, Zr2O3 45% | Finished Parts |
Boron Nitride Plate Advantages
– Low wettability to molten metal
– Low dielectric constant
– Relatively high thermal conductivity with low thermal expansion
– Relatively high thermal shock resistance
– Relatively high heat resistance
– Extremely high working temperature with proper inert gas protection (>3000C has been recorded).
Boron Nitride Plate Applications
Boron Nitride ceramic from CG Material can withstand high temperature in a high vacuum environment, plus it is chemically inert — it has excellent corrosion resistance and electrical resistance. Thus, Boron Nitride ceramic product is an ideal choice in a wide range of industries, such as:
-Electric insulators in vacuum system
-Insulators for high-temperature furnace
-Spacers for glass melting
-Boron Nitride parts for ion injection equipment
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
