Alumina Based Tubular Ceramic Membrane
Alumina Based Tubular Ceramic Membrane
Activated alumina based tubular ceramic membrane is a type of filtration technology used for the separation and purification of liquids and gases. The membrane is made from a porous ceramic material, typically alumina, which has been activated to create a high surface area and a network of microscopic pores.
The activated alumina based tubular ceramic membrane consists of a series of interconnected tubes or channels, with the porous ceramic material acting as a barrier between the feed solution and the permeate. The membrane allows for the selective passage of molecules or particles based on size and charge, resulting in the separation and purification of the desired product.
Activated alumina based tubular ceramic membranes are widely used in various industries, including chemical, pharmaceutical, and food and beverage industries, for applications such as wastewater treatment, concentration and purification of liquids, and removal of impurities.
Compared to other types of membranes, activated alumina based tubular ceramic membranes have several advantages, including high mechanical strength, chemical stability, and resistance to fouling and scaling. They also have a long lifespan and can be easily cleaned and regenerated, making them a cost-effective solution for industrial filtration needs.
Overall, activated alumina based tubular ceramic membranes offer a reliable and effective solution for the separation and purification of liquids and gases in various industrial applications. Their high mechanical strength, chemical stability, and resistance to fouling and scaling make them ideal for use in harsh and demanding environments.
| Catalog No. | CERAMICS |
|---|---|
| Size | Customized |
| Material | Al2O3 |
| Purity | 95% 99% 99.7% |
| Density | 3.8~3.9 g/cm3 |
At CG Material, we offer high quality Alumina Based Tubular Ceramic Membrane with exceptional purity and precision in terms of size. Our products range in diameter from 1mm to 100mm and have a purity level of up to 99.8%. We also provide custom manufacturing options for special shapes to meet specific needs.
Alumina Based Tubular Ceramic Membrane Specifications
| Technical Data | |
| Substrate Material | Al2O3 |
| Pore Size | 0.8um, 0.2um, 100nm, 50nm, 20nm or customized |
| Length of elements | max. 1200 mm |
| Burst pressure |
φ25mm Tubes≥4Mpa φ30mm Tubes≥6Mpa φ40mm Tubes≥8Mpa |
| Structure | symmetric, coatings are possible |

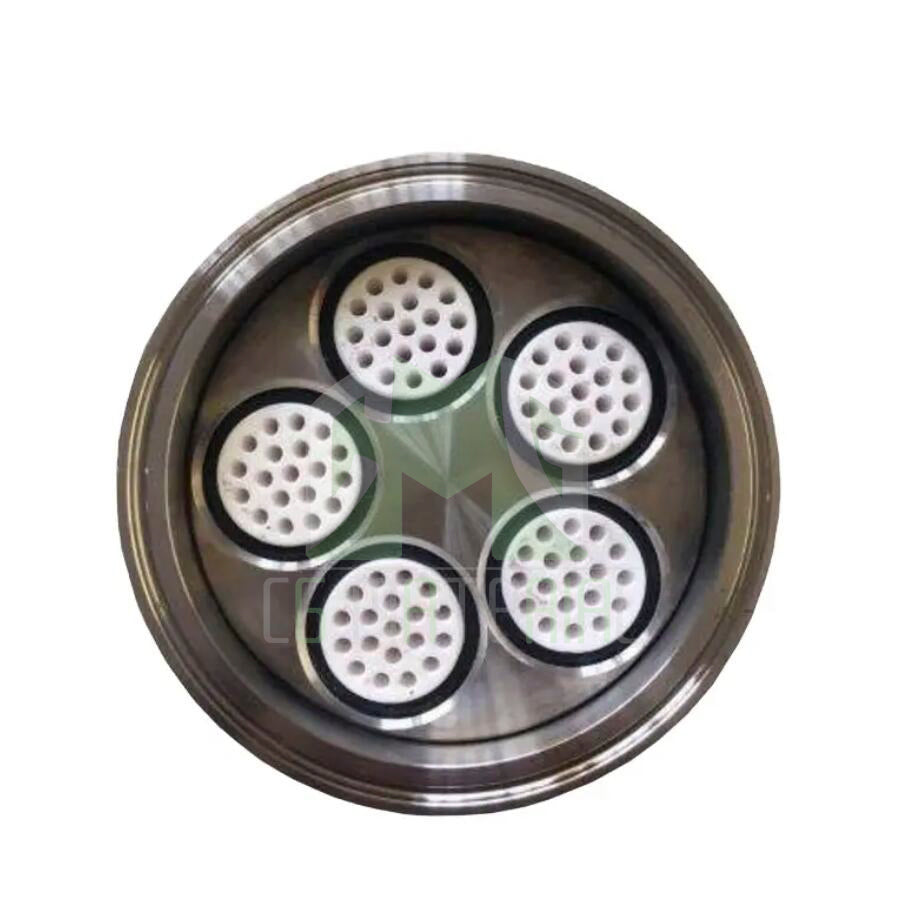

| Configuration | multiple options |
| Temperature resistance in air | up to 350 °C |
| pH stability | 0-14* |
| Operating pressure | ≤1Mpa |
| Organic Solvents | Insensitive |

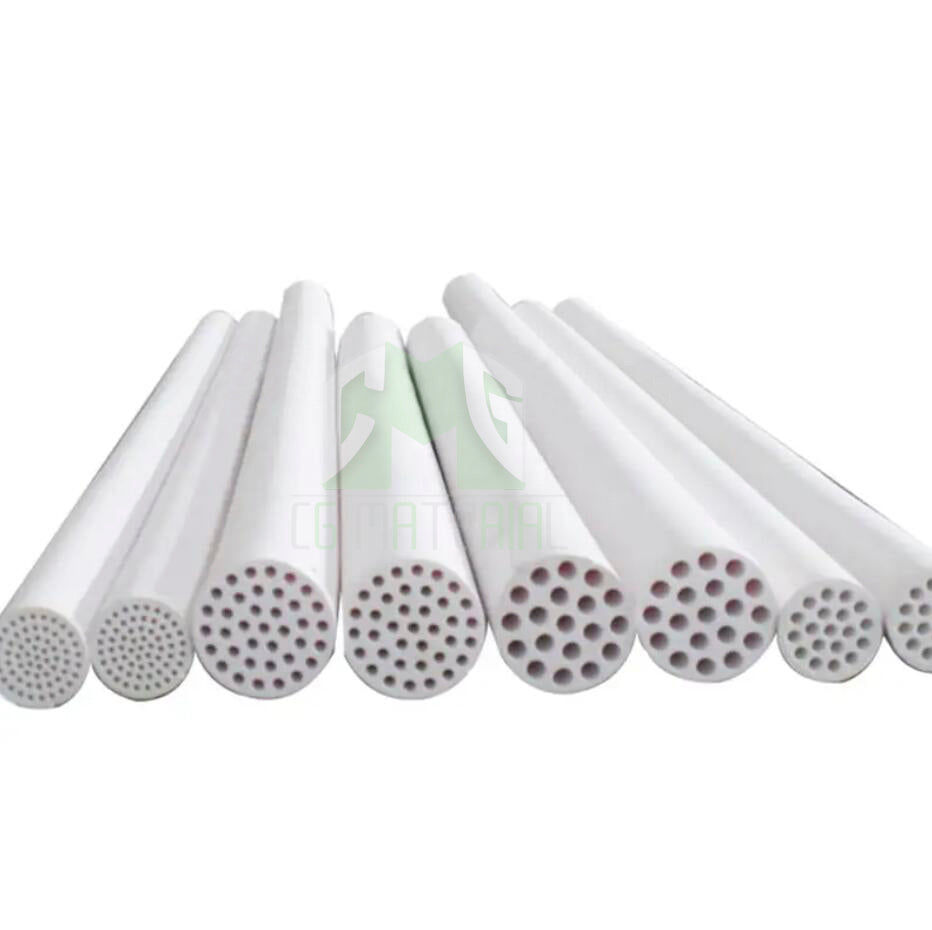

| Type | Channels Numbers | Length(mm) | Channels Diameters(mm) | Membrane Areas(m2) | Design |
| TCM-1 | 1 | 1016 | 7.0 | 0.02 |  |
| TCM-7A | 7 | 1016 | 6.0 | 0.158 |  |
| TCM-7B | 7 | 1178 | 6.0 | 0.20 |  |
| TCM-19A | 19 | 1016 | 4.0 | 0.24 |  |
| TCM-19B | 19 | 1178 | 3.3 | 0.23 |  |
| TCM-19C | 19 | 1000 | 6.0 | 0.358 |  |
| TCM-37A | 37 | 1200 | 2.0 | 0.30 |  |
| TCM-37B | 37 | 1000 | 3.6 | 0.418 |  |
Alumina Based Tubular Ceramic Membrane Applications
Alumina Based Tubular Ceramic Membrane can be applied in the following fields:
– Filtration of fermentation broth of amino acids (like lysine, threonine), organic acid (like lactic acid, succinic acid), etc.
– The concentration of reducing gel, etc.
– Clarification & Filtration of food & beverages (like fruit juice, plant extracts)

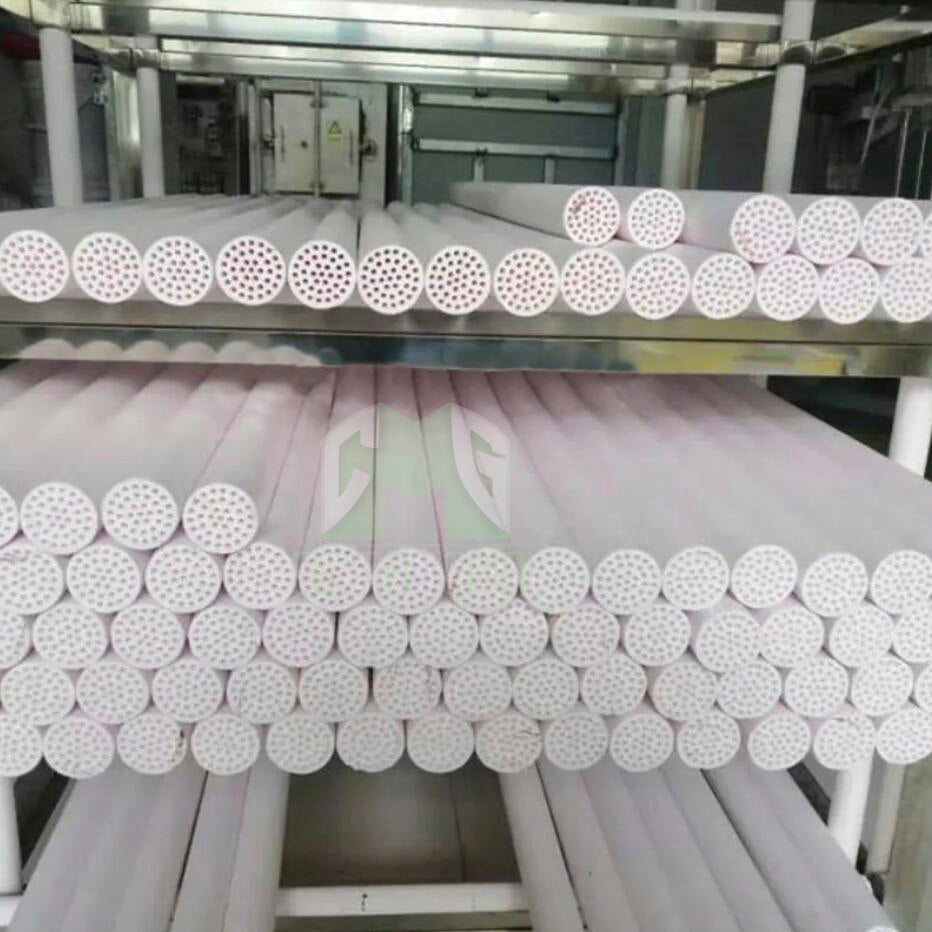

Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
