CG MATERIAL

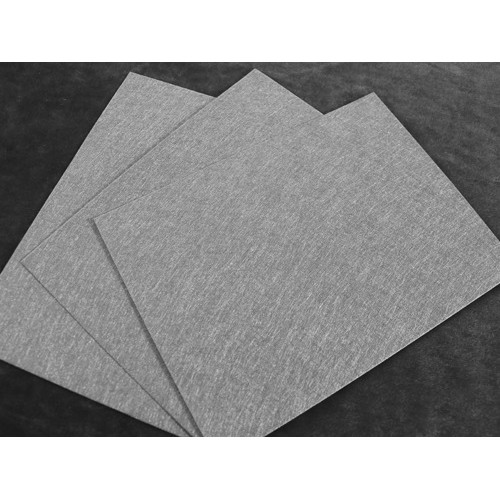

Titanium Fiber Felt
Titanium Fiber Felt
| Material |
Ti |
|---|---|
| Purity | >99.9% |
| Appearance | Silver grey metallic fiber felt |
| Porosity | 75-78% |
Description
Titanium fiber felt is a type of composite material made from titanium fibers. It has a porous structure and can be used as a filter or catalyst support in various industries such as chemical, petrochemical, and aerospace. The fibers are typically made by melting titanium and then rapidly cooling it to create a solidified, porous mass. The resulting material is then processed further to create the fiber felt. Titanium fiber felt has many desirable properties such as high strength-to-weight ratio, high temperature resistance, and excellent corrosion resistance, which make it an ideal material for use in harsh environments.
Specifications of titanium fiber felt:
| Property | Value |
|---|---|
| Material | Pure titanium (Grade 1 or 2) |
| Felt Thickness | 2-10 mm |
| Density | 0.15-0.25 g/cm^3 |
| Porosity | 95-98% |
| Maximum Operating Temperature | 600-800°C |
| Tensile Strength | 80-150 MPa |
| Thermal Conductivity | 0.2-0.5 W/(m·K) |
| Coefficient of Thermal Expansion | 9.0-10.6 × 10^-6 K^-1 |
| Electrical Conductivity | 4.5-5.5 × 10^6 S/m |
Note: The above specifications are for reference purposes only, and the actual values may vary depending on the manufacturing process and specific product.
