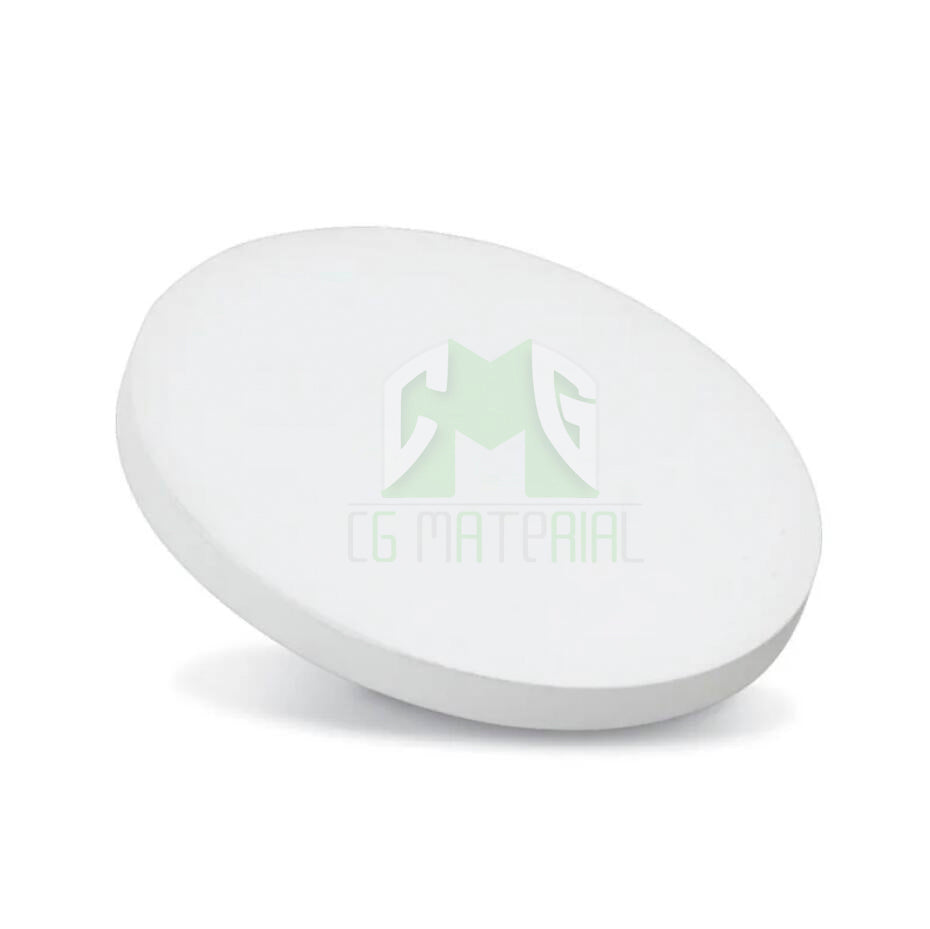

Boron Nitride Plate, BN Plate
Boron Nitride Plate, BN Plate
Boron Nitride Plate, also known as BN Plate, is a high-performance ceramic plate made from boron nitride (BN) powder. It is a white, highly crystalline material with a hexagonal lattice structure that gives it exceptional thermal and mechanical properties.
BN Plates are produced using a hot-pressing process that involves applying heat and pressure to BN powder, resulting in a highly dense, uniform material with excellent strength and thermal conductivity.
BN Plates are highly valued for their unique combination of properties, which include high thermal conductivity, excellent electrical insulation, low coefficient of friction, and resistance to thermal shock. These properties make BN Plates ideal for use in high-temperature applications, such as furnace linings, crucibles, and heat exchangers.
BN Plates are also highly resistant to chemical attack and can withstand harsh chemical environments, making them an ideal material for use in chemical processing and semiconductor manufacturing.

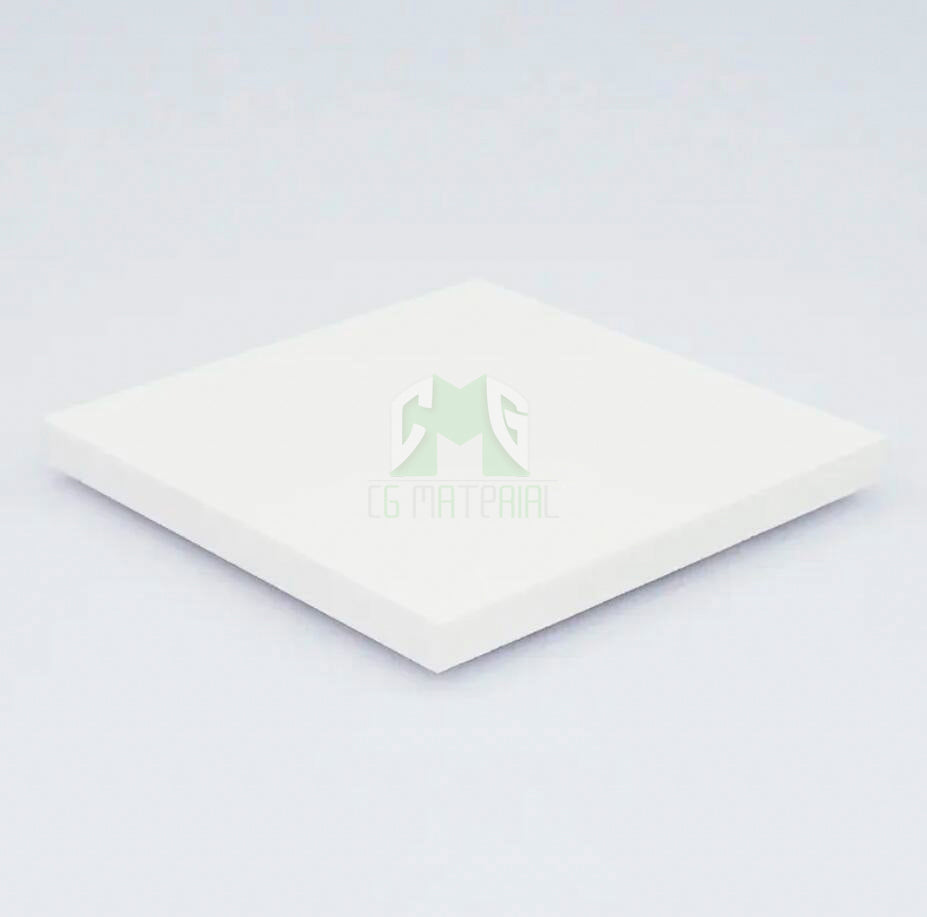

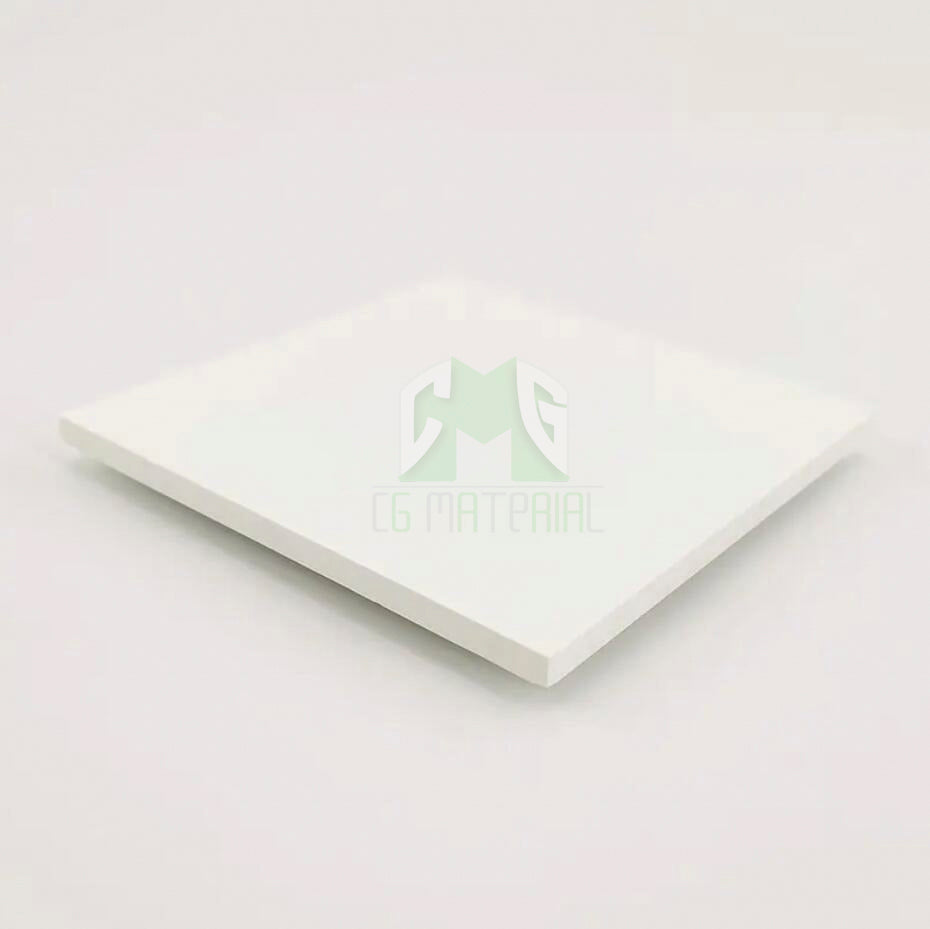

BN Plates are available in various thicknesses, ranging from thin sheets to thick blocks, and can be customized to meet specific application requirements. They are also available in a range of sizes and shapes, including rectangular, circular, and custom shapes.
Boron Nitride Ceramics Specification
CG Material production formulations are developed to address the varied application problems in which ceramic components are commonly used. Many industrial applications push the envelope on specific requirements leading to the development of new formulations to successfully address them.
| Item No. | Description | Purity | Lot Size |
| CG-NI05-98 | Boron Nitride Powder Particle Size: 3 µm, 200 mesh or 325mesh |
BN > 98 %， B2O3 < 0.6%, Ca < 0.015%, Si < 0.12% |
100 kg 1000kg Customize |
| CG-NI05-99 | Boron Nitride Powder Particle Size: 3 µm, 200 mesh or 325mesh |
BN > 99 %， B2O3 < 0.4%, Ca < 0.01%, Si < 0.10% |
100 kg 1000kg Customize |
Comparison of Boron Nitride Ceramics
| Grade | BN-BO | BN-SZ | BN-AlN |
| Compositions | BN>98% | BN+SiC+ZrO2 | BN+AIN |
| Binder | B2O3 | / | AlBO3 |
| Density | 2.1-2.2 g/cm3 | 2.3-3.0 g/cm3 | 2.5-2.6 g/cm3 |
| 25°C Volume Resistivity | >1013 Ω·cm | >1012 Ω·cm | >1014 Ω·cm |
| Max. Service Temp. (°C) Oxygen; Inert Gas; High Vacuum |
900 2000 1800 |
900 1700 1700 |
900 2100 1900 |
| Flexural Strength | 75 Mpa | 100 Mpa | 130 Mpa |
| Compressive Strength | 100 Mpa | 300 Mpa | 250 Mpa |
| Coefficient of Thermal Expansion 25-1000°C |
2.0 x 10–6/K | 4.0 x 10–6/K | 4.5 x 10–6/K |
| Thermal Conductivity | 30 W/mK | 40 W/mK | 60 W/mK |
Boron Nitride Plate Specifications
|
Item |
value |
Unit |
|
|
lattice constant |
a:2.504×10-10 c:6.692×10-10 |
μ m |
|
|
density |
2.0-2.19 |
g/cm3 |
|
|
resistivity |
3.11×1011 |
Ω·cm |
|
|
tensile strength |
153.86 |
N/mm2 |
|
|
bend strength |
c |
243.63 |
N/mm2 |
|
ab |
197.76 |
N/mm2 |
|
|
elastic modulus |
235690 |
N/mm2 |
|
|
thermal conductivity |
“a” direction “c” direction |
||
|
(200℃) |
60 2.60 |
W/m·k |
|
|
(900℃) |
43.70 2.80 |
W/m·k |
|
|
dielectric strength (at room temperature） |
56 |
KV/mm |
|
Please notice, as a CVD material, pyrolytic boron nitride sheets could not be very thick. The largest thickness available for our PBN sheet is 0.2". We also provide PBN crucibles, tubes, and heating elements!
Boron Nitride Plate / Disc Applications
Boron Nitride ceramic from CG Material can withstand high temperature in the high vacuum environment, plus it has excellent corrosion resistance and electrical resistance. Thus, Boron Nitride ceramic product is an ideal choice in a wide range of industries, such as:
-Electric insulators in the vacuum system
-Boron Nitride components for PVD, MOCVD, MBE system.
-Nozzles for nonferrous metals metallurgy industry
-Spacers for glass melting
-Insulators for high-temperature furnace
Packaging
We handle our products with care to ensure they remain in their original condition during storage and transportation and to preserve their quality.
